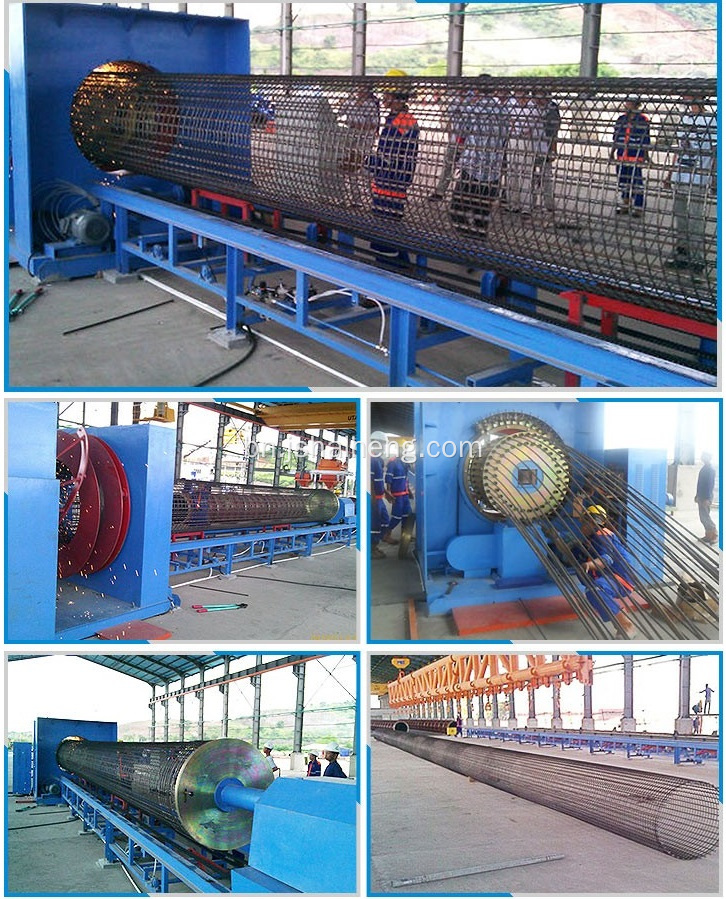

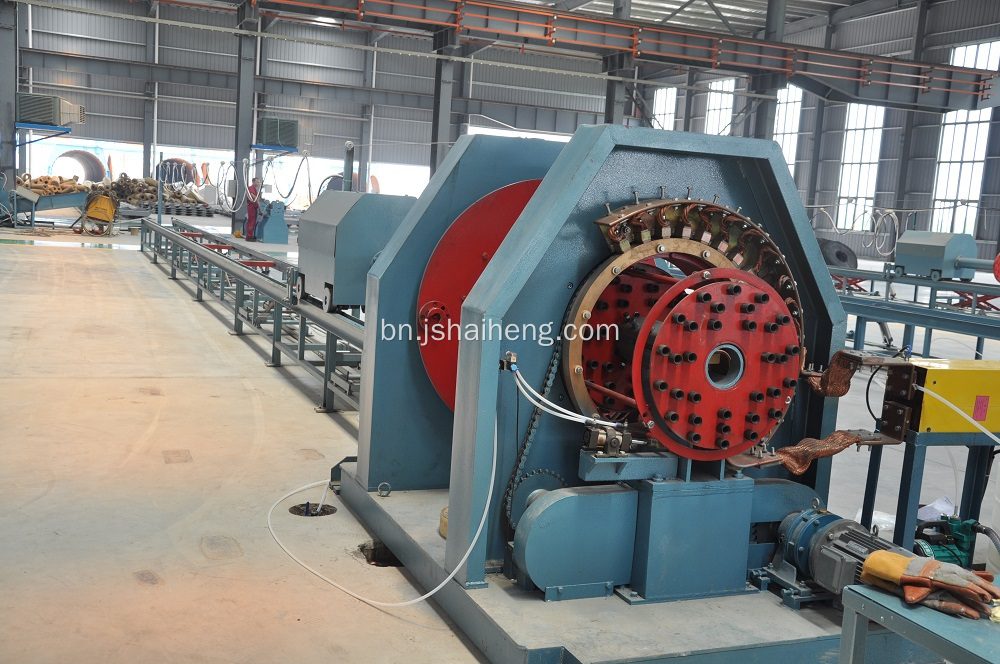

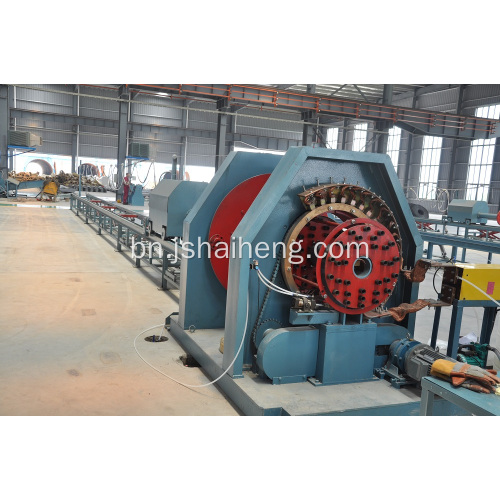

ওয়্যার কেজ ওয়েল্ডিং এবং ফর্মিং মেশিন

No.

Item

Specification

1

cage welding dia.

ø300 .ø400. ø500. ø600

2

length of cage welding

7M-15M(special cases is extended to 45M)

3

The number of longitudinal reinforcement bar

6.7.10 or 7.10.12.14 etc.(according to user's requirement)

4

Longitudinal reinforcement bar diameter

ø7.1.ø9.0.ø10.7

5

Ring reinforcement diameter

ø4- ø6

6

The cage body pitch

0-100mm

7

Pulling speed

MAX7500mm/min

8

Driving Power

8.4KW

9

Welding power

300KVA

10

Rotational speed of main engine

0-64r/min

11

Welding manner

ERW(electric resistance welding)

12

Control manner

Automatic control

No.

Item

Technical specification

13

Welding material

Any steel with a carbon content of less than 0.20%

14

Loss of solder strength

≤5%

15

Tension or shear at the solder joints

≥200KG

16

Welding transformer cooling mode

wind cooling,self-cooling

17

welder power supply

380V±5%  50HZ

18

environment temprature

-5℃--+35℃

19

 Relative humidity

＜85%

20

welder weight

≈5T
