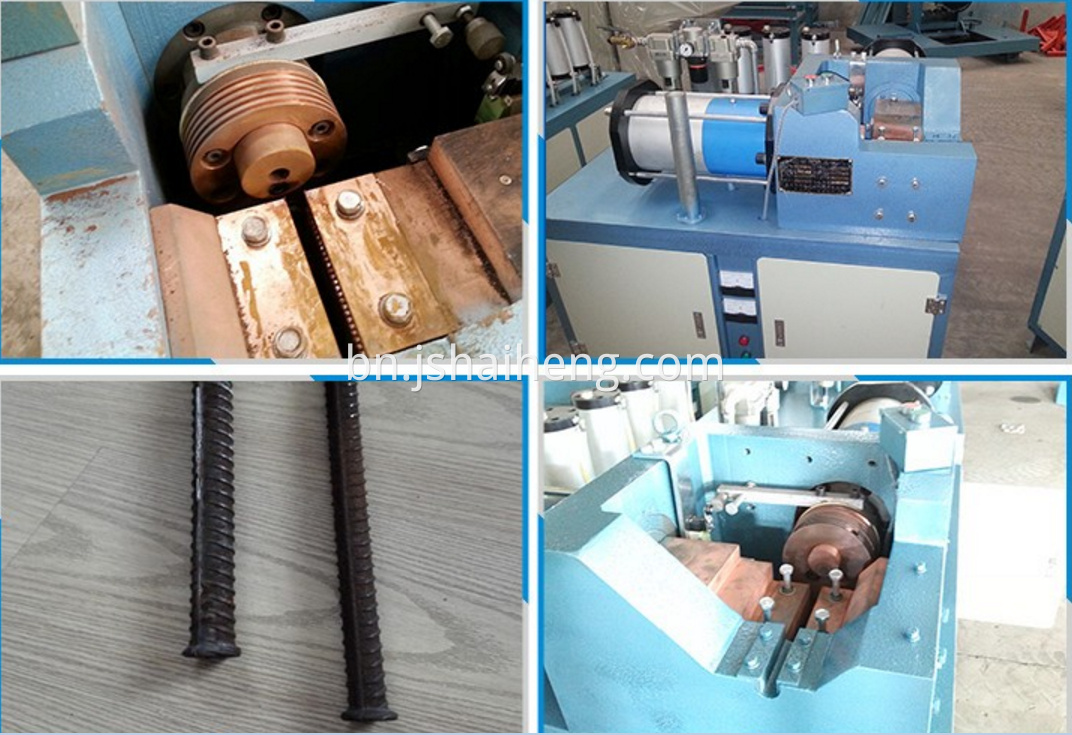

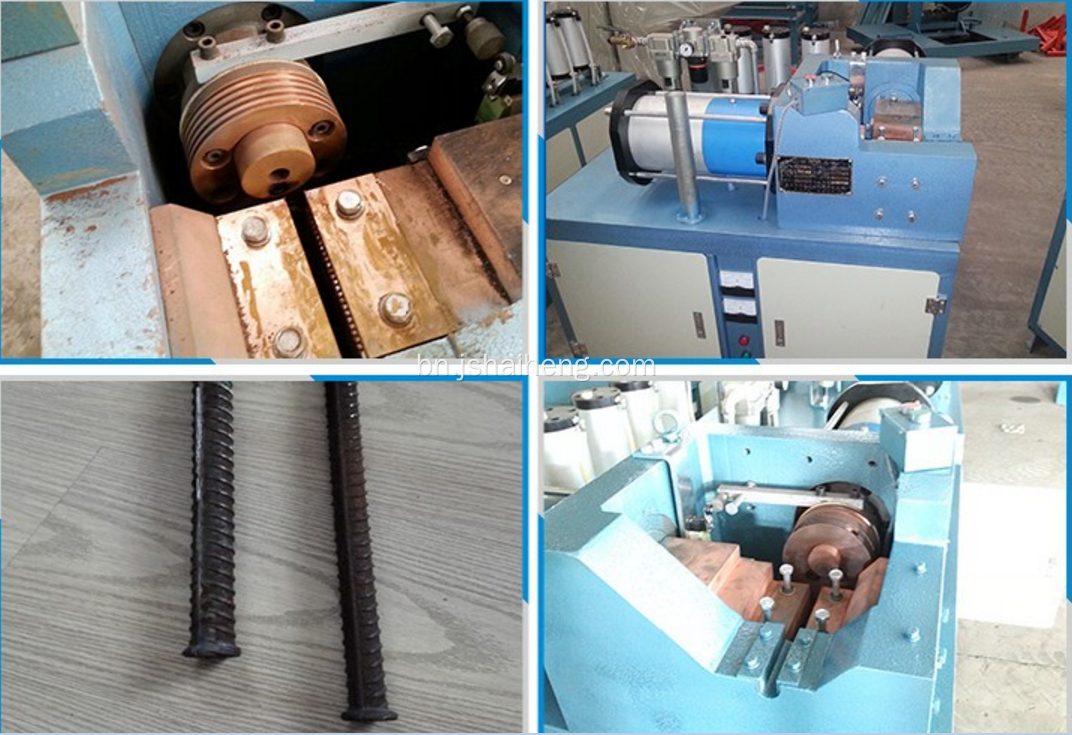

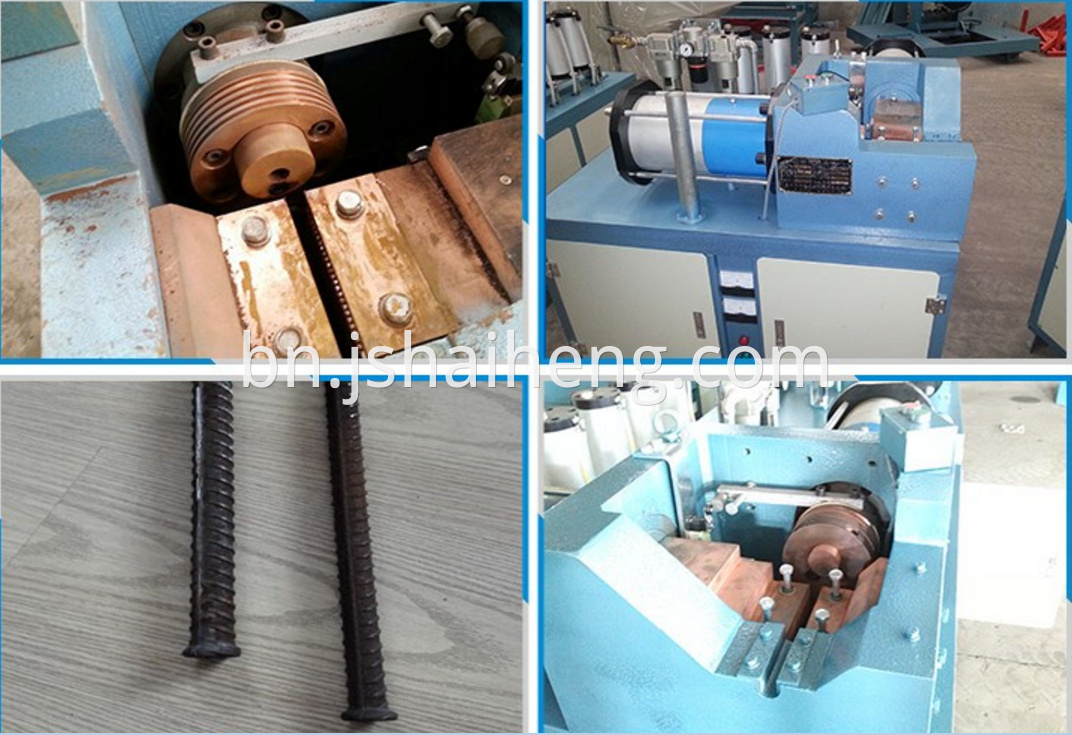

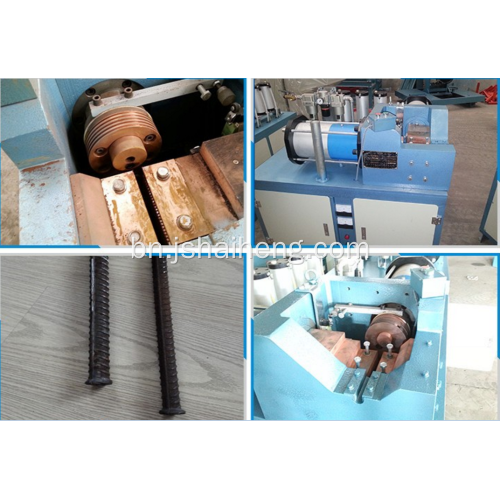

উচ্চ মানের বোতাম শিরোনাম মেশিন

No.

Item

Specification

1

air source

MAX7.2kg∕cm²

2

Input voltage

Three phase,four wire,AC380V±5%,50Hz

3

Max capacity

15KVA

4

Max clamp

air pressure 7.2kg∕cm²,50T

5

Max capacity of heading

air pressure 7.2kg∕cm²,16T

6

Loss of reinforcement strength in heading

＜5%

7

 Maximum heat current

           about 5500A

8

Button heading steel bar dia.

ø7.1,ø9.0,ø10.7,ø12.6

9

Machine size

L×W×H=1250×1180×1300 unit(mm)

10

Machine weight

1T

11

Same specification devide

devide left hand(model:z)and right hand(model:Y)two operations

12

Button heading operate time

Each about 12-16S
